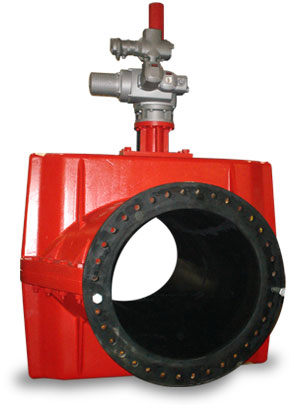

Series 75 B

Description

The Series 75B Manual Pinch Valve is a reliable, maintenance-free, cost-effective valve designed for tough slurries and abrasive and corrosive chemical applications below ground.  This pinch valve was designed specifically for underground service. It is sealed with an epoxy coating and provides double containment. Optional position indicators are available.  There are no seats to grind, no stuffing boxes to repack and no packing gland to adjust.  The pinching action is on centerline so the valve closes on a smooth venturi and is self cleaning.

The heart of this unique valve is the durable, flexible rubber sleeve that is reinforced with high-strength fabric.  The sleeve, which is the only part of the valve exposed to the process, eliminates maintenance and the need for expensive, exotic body materials.  Additionally, valve operation will not freeze and operating torques remain constant.

Series 75B Pinch Valves have the same face-to-face as gate, plug, or ball valves. ANSI 16.10 up to 6” size. sizes 8”, 10” and 12” Series 75Bs are available to ANSI 16.10 face-to-face with reduced-port sleeve.

When Ordering A Series 75B, Please Specify Which Of The Following Operating Options Your Application Requires:

  • AWWA nut
  • Handwheel on top with no bevel gear
  • Bevel gear operator
  • Bevel gear operator with dial gear (G.P.I.) position indicator

Click here for more detailed information.

Features

  • No packing to maintain, ever
  • Same face-to-face as gate, plug or ball valves to 12”
  • Sleeve is the only wetted part
  • Position indicator, heavy-duty sleeve
  • 100% full-port design
  • Bi-directional, bubble-tight shutoff
