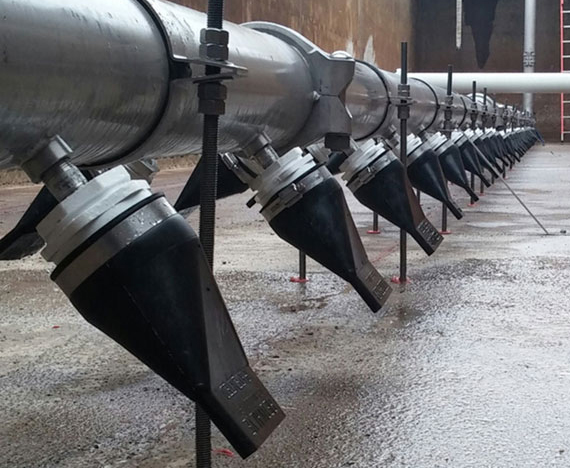

Aeration Mixing Systems

Optimizing Oxygen Transfer and Mixing Characteristics

Providing optimal oxygen transfer and mixing characteristics with reliable backflow prevention, Tideflex Aeration and Mixing Systems are ideal for use in municipal and industrial aeration applications. While conventional fine and coarse bubble diffusers typically clog with sludge when airflow is interrupted due to blower shutdown or power failure, Tideflex Aeration Diffuser Valves maximize mixing while totally isolating the wastewater from the air manifold and related equipment and instrumentation.  By preventing maintenance shut downs and eliminating the need to run blowers or compressors around the clock to prevent clogging of the diffusers and manifold, Tideflex Aeration and Mixing Systems provide substantial savings in energy and operational costs.

Check Valve Diffusers: How the Tideflex® Aeration Mixing System Works

The Tideflex® Check Valve Air Diffuser

More than 50 years ago, Red Valve Company developed the Tideflex® duckbill check valve. This elastomer check valve allows flow in one direction only and seals closed when the external hydrostatic pressure exceeds the internal pipe pressure.

With diffused aeration systems, preventing the wastewater and biomass from entering into the air distribution system is critical to ensuring continual operation of the mixing system and the elimination of solids build-up and clogging inside the pipeline.

The Tideflex® Check Valve Air Diffuser is a proprietary compression molded Tideflex® unit.

The two most important performance features of the Tideflex® System are 1) backflow prevention at the diffuser and 2) air discharge location within a few inches from the floor.  These features allow the system to be operated in an ON/OFF blower mode for nutrient removal and also provide significant energy savings.

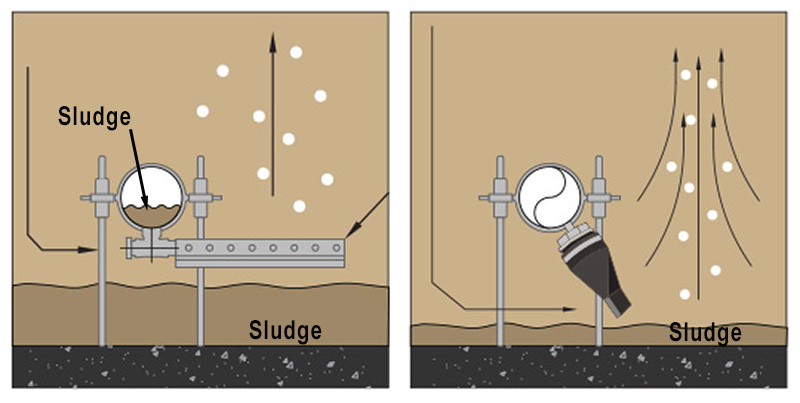

Near-Floor Discharge

Near Floor DischargeBlower ON - Gas travels vertically due to buoyancy. Fluid is educted into vertical flow path. Diffuser tip is located 3” to 4” off the floor.

Blower OFF - Hydrostatic pressure on external sides of diffuser forces a “sealed” close.

Near Floor DischargeDuring blower operation, the Tideflex® Check Valve discharges air at near-floor elevation for complete vertical mixing. The benefit of the Tideflex® Diffuser is the prevention of sludge build-up in the bottom of the tank, eliminating backflow of the process fluid into the upstream internal pipe. Open pore style diffusers have no backflow prevention. Pipes fill with sludge when thte blower is off.

Near Floor DischargeThe Tideflex® Combination Aeration and Mixing system allows for ON/OFF blower operation for nutrient removal processes, decanting processes, biological selectors and general power savings.

Automatic Closure and Positive Seal

Automatic Closure and Positive Seal
The Tideflex® Model TFA-3.00 Coarse Bubble Diffuser contains two thin gauge stainless steel plates, which are embedded on both sides of the flat “bill” closure area.  When the diffuser is operating (flowing open), the internal closure plates become energized.  Due to bending curvature, the plates will force the bill area closed when flow is discontinued.  This feature is significant when operating in fluids of 1% solids or greater.

Available Elastomers

The Tideflex® compression molded diffusers are available in several elastomers including EPDM, NEOPRENE BUNA-N and PGR.  For municipal wastewater applications, EPDM is most often applied for it’s high resistance to acids and ultraviolet radiation.  This EPDM compound contains less than 10% leachable oils, therefore it will maintain its elasticity for years of operation. Tideflex® Mixing Systems are also used in industrial mixing applications where the fluid characteristics can vary significantly.

High Solids Residuals Management: Aerobic Digesters and Sludge Holding Tanks

ON OFF Blower Operational Mode

ON/OFF Blower Operational Mode

The Tideflex® Aeration Mixing system is a sealed system preventing the surrounding wastewater and solids from entering into the diffusers and manifold piping. This provides the capability to cycle the blower on and off as the process requires.  For sludge storage processes, this allows for decanting and thickening of the storage residuals as well as denitrification.  Most Tideflex® alternating systems reduce blower operating costs by at least 35%.

These Tideflex® systems are preferred in high solids applications where the clogging potential is significantly increased.  Wastewater treatment sludge applications range from 1% to 5% solids and water treatment alum sludge applications from 5% to 9% solids.

The Tideflex® system is the only air mixing system rated for these high solids applications, while at the same time providing maintenance-free operation.

The Tideflex® Mixing system can be applied in anoxic process zones utilizing the ON/OFF operational mode.  Most anoxic zones only require periodic mixing of the bio-floc. The Tideflex® system can achieve complete mix within about one minute of operation.  This short operational period results in very little oxygen transfer; these anoxic processes are in a negative ORP state where the presence of this low oxygen residual has little effect on the ORP state.

System Assembly Components

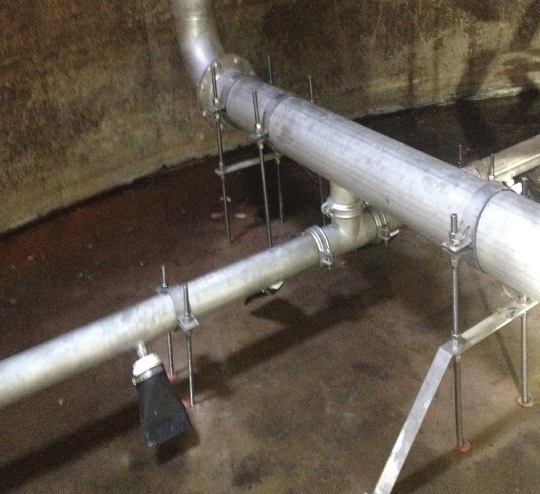

System Assembly Components

Tideflex® Aeration Mixing System manifolds are most often constructed of all stainless steel materials.  All connections are either flanged, roll grooved and coupled, or threaded.  The thermal expansion couplings and rigid joint couplings are Victaulic® brand 316SS with silicone gaskets for heat control. The system piping is anchored to concrete foundations with threaded rods and Hilti® epoxy adhesives.  For steel tank floors, base plates are provided for anchoring.

Biological Selector Capability

Biological Selector Capability

These systems can be operated as a biological selector using ON/OFF aeration and mixing. Utilizing ORP Control (Oxygen Reduction Potential), these systems can be operated at 70% less applied airflow.

Channel Aeration & Mixing Systems

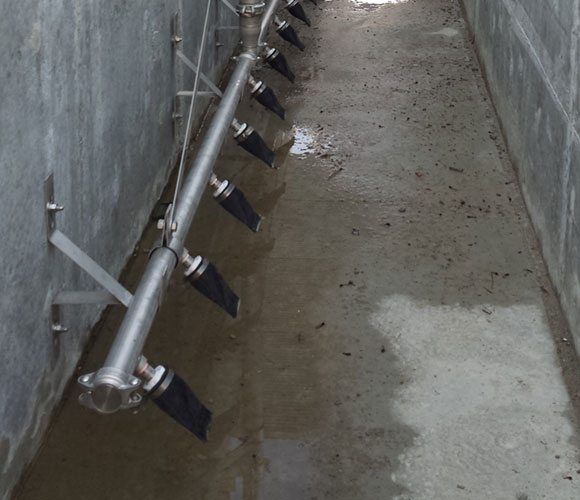

Channel Mixing Assemblies

Common channels in wastewater treatment facilities service multiple tanks and once put into service are impractical to drain and access equipment.  These channels are susceptible to solids accumulation as the linear velocities are typically very low.  The residence time in these channels can also be extended to the point where the process wastewater transitions to an anoxic state.

Channel aeration and mixing addresses these two issues.  Solids are re-suspended by the mixing loops and the residual dissolved oxygen is increased for aerobic conditions. The Tideflex® channel assemblies are designed for lift-out removal when the channels are full of water and re-insertion into the channel after inspections.  The lower wall brackets act as cradles to receive and hold the horizontal distribution pipes.

Channel Aeration & Mixing Systems

Wetwell Mixing

The systems are most often fabricated from schedule 10 stainless steel piping either 304L or 316L. The joint connections are all roll groove type using Victaulic® rigid couplings for easy field assembly. These assemblies are available  in various modular lengths for the horizontal manifold section.

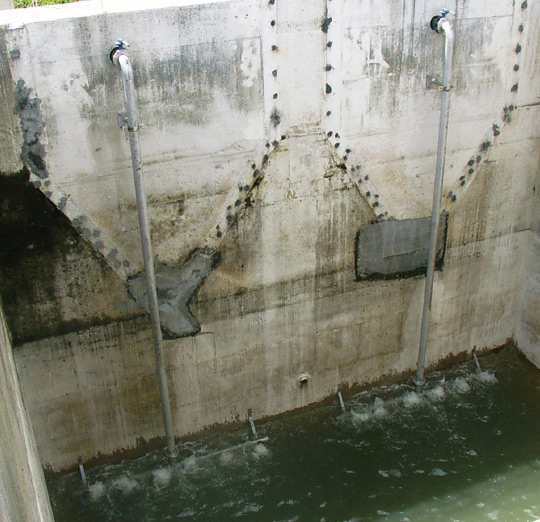

Wetwell Mixing

Wetwell Mixing

Wastewater pump station wetwells can utilize periodic mixing and oxygen supply. These modular assemblies can be applied in wetwells to break up the floatables (oil and grease) and the settled solids near the pump inlet. Often these systems are operated prior to the transfer pumps coming on-line.

Wetwell Mixing

Aerated Grit Tank Mixing SystemsAerated Grit Tank Mixing Systems

Optimizing Existing and New Grit Tank Geometries

Aerated grit tank designs have been utilized for the last 100 years, but have never been validated in terms of performance optimization. With the availability of computerized evaluations, primarily computational fluid dynamics (CFD) programs, these older designs have been evaluated for enhancement of performance. Tideflex® has incorporated these enhancements into their system designs and recommendations, resulting in performance increases of at least 20%.

Tideflex® Engineers will determine the quantity of mixing zones required within the process.  An evaluation should be performed for optimal operation to address storm surge capacity system needs.  Grit removal systems should also provide a means for washing the biomass from the grit. This is achieved in the high-rate mixing zones at the beginning of the process. The mixing zone’s energy requirements are decreased longitudinally through the grit tank for removal of various particle diameters.

New Design Standards for Aerated Grit

The Tideflex® mixing assemblies provide excellent zone mixing. Each assembly has a flow regulator valve to control the mixing loop velocity. Maintenance periods and downtime for aerated grit tanks typically  result in temporary accumulation of grit within the tank, to the point where the grit blanket covers the diffusers. Plastic type diffusers fail in these loading conditions. Tideflex® diffusers are extremely durable and withstand these conditions without disruption or downtime.

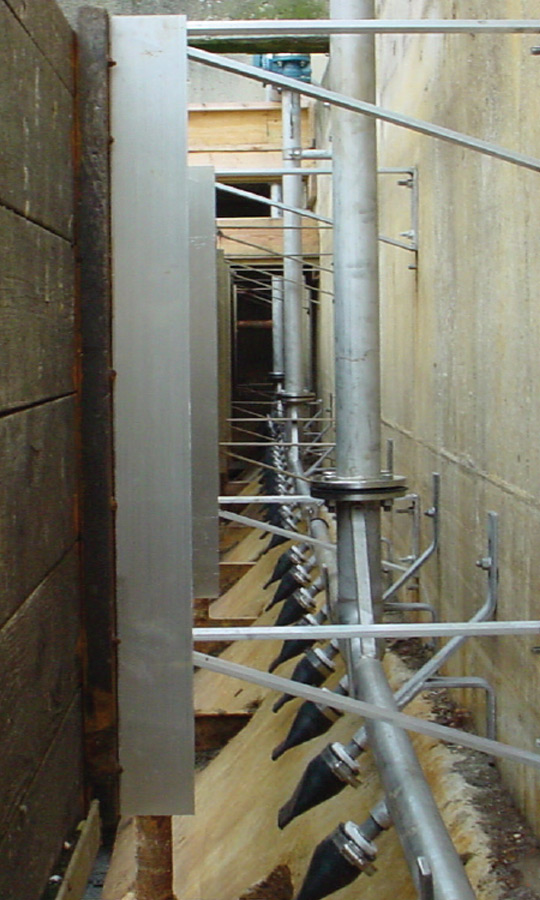

New Design Standards for Aerated Grit

New Design Standards for Aerated Grit

Tideflex® Engineers have partnered with several consulting engineering firms in conducting CFD modeling of existing structures as well as optimized enhancements. This has allowed Tideflex® to develop new design standards and guidelines for grit tank optimization. These guidelines include mixing zone quantities, energy rates, baffle locations, diffuser locations, and inlet channel configurations.Tideflex® engineers provide the mixing assemblies, throttling valves, support brackets, anchors and diffuser assemblies.

Contact Tideflex® Engineering today for an evaluation of your existing or new aerated grit tank system for enhancement using the newest technology.

Stormwater Containment, Mixing & Aeration

Stormwater Containment, Mixing & Aeration

Stormwater Management

Regulations for stormwater containment, testing and treatment are currently being implemented.  Storage is required to capture the initial run-off and test for treatment requirements. This stormwater can contain accumulated pollutants and debris, requiring mixing systems in these storage tanks to re-suspend the accumulated solids, as well as provide residual dissolved oxygen to keep the fluid from going anaerobic.

The Tideflex® Coarse Bubble Mixing System with EPDM nozzles is very durable and can be fully exposed to weather conditions (open lagoon structures) or contained within a buried storage vault. The nozzles are non-clogging devices, making the system maintenance-free, with no need for regimented service. They are ideal for these applications that are typically located away from the primary wastewater treatment facility and its operational staff.

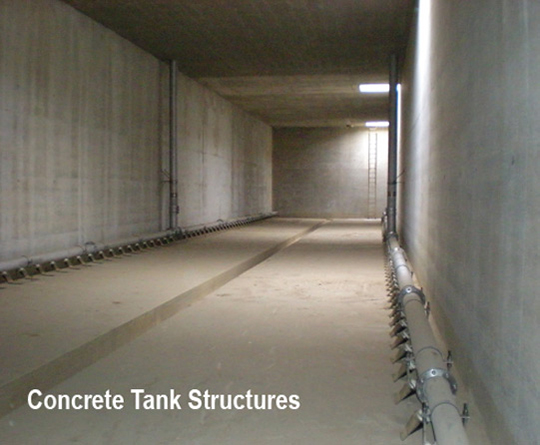

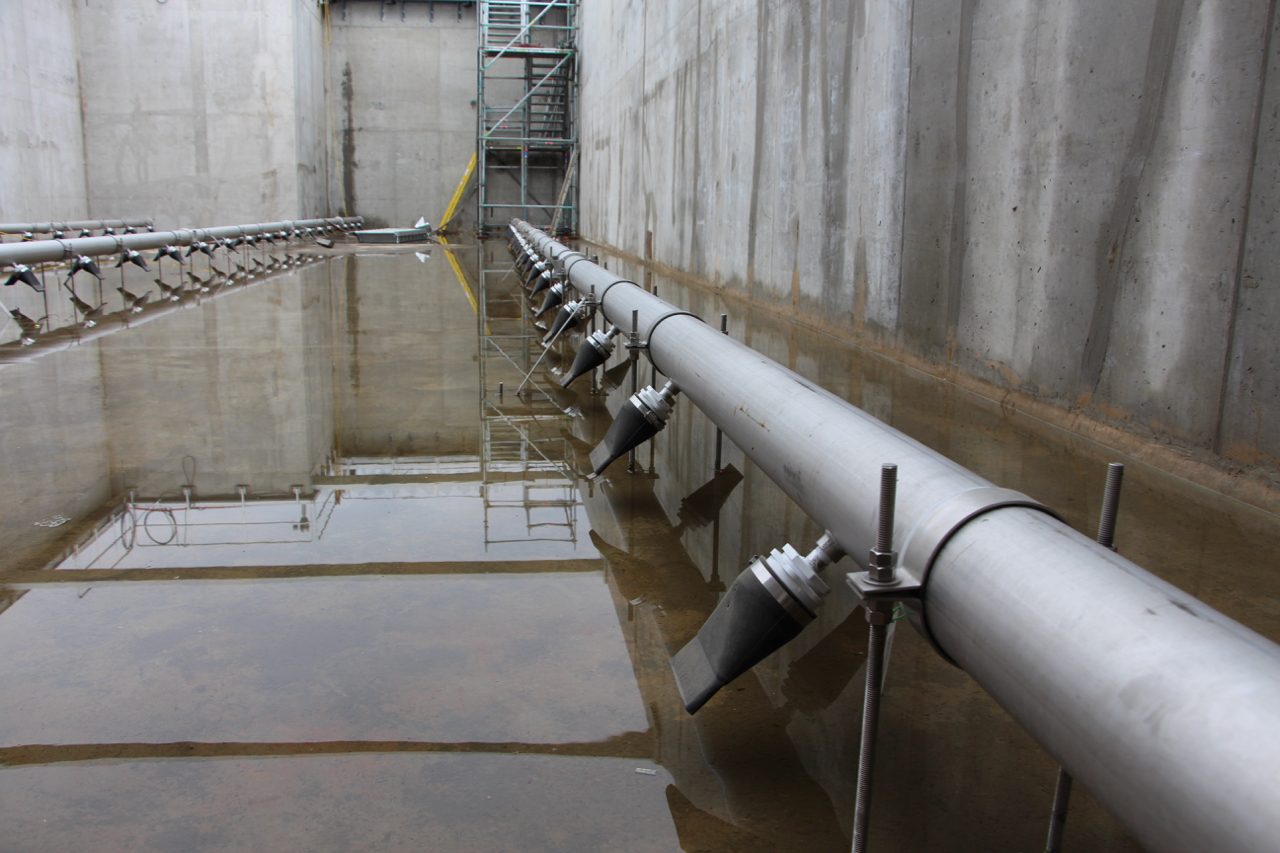

Concrete Tank Structures

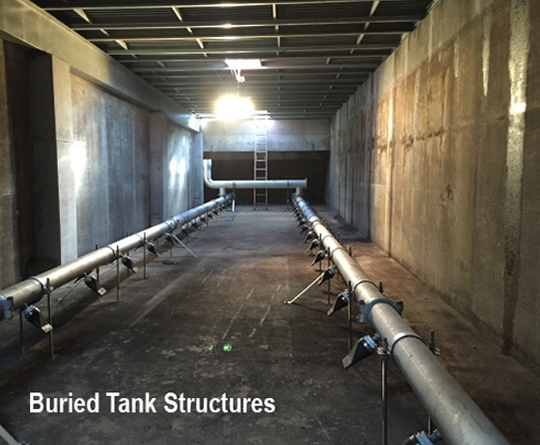

Buried Tank Structure

The Tideflex® systems can be operated in an ON/OFF mode for periodic mixing as required to significantly reduce energy usage. The check valve diffusers prevent waste and debris from entering the manifold piping and provide a maintenance-free system. The Tideflex® design models produce the most efficient configuration of piping and diffusers for optimizing controlled loop mixing and fluid momentum. Controlled loop mixing provides better mixing of heavy solids as compared to full floor coverage configurations.

Equalization Tank Mixing

Equalization Tank Mixing

Tideflex® Systems have been installed in all tank construction variations; concrete tanks, bolted steel tanks, and lined lagoons.

Fabricated Tanks

Equalization tank mixing systems are very similar to the design and operation of stormwater containment systems. They can be operated in a variable volume mode where the mixing system provides solids suspension and residual dissolved oxygen adequate to keep the process fluid aerobic. If an anoxic process follows to the equalization tank, then a hydraulic mixing and recirculation system should be considered. Refer to the Tideflex® HRMS Mixing System.

Highly Durable, Maintenance-Free
Systems

Mixing systems are required in most storage tanks to re-suspend the accumulated solids as well as provide some residual dissolved oxygen to keep the fluid from going anaerobic. These mixing systems must be durable and dependable as they can sit idle for long periods and then require immediate operation during a storm event.

Engineering and Modeling Technology

engr-01

Tideflex® Mixing Systems are designed by staff environmental and process engineers. Tideflex® Technologies has developed numerous mathematical, process and hydrodynamic models for use in sizing various Mixing Systems. Tideflex® continues to lead the industry in mixing technology—we welcome the opportunity to provide a no obligation evaluation of your system to help achieve optimal mixing performance.

Click here for more detailed information.

U.S. Patent No. 6,016,839 / 6,193,220 / 6,372,140 / 6,702,263

Canada Patent No. 2,366,252 / 2,385,902

United Kingdom Patent No. 2,326,603
